Frigidaire Gallery GCCE3070AS 30 Inch Electric Cooktop - Stainless Steel Built-In Stove Top for Modern Kitchens | Perfect for Home Cooking & Entertaining

Product Description

• Description
• Features
• Specifications

• The Frigidaire Gallery 30" Electric Cooktop provides delicious results every time with the EvenTemp? Element that delivers consistent heat across the elements surface, reducing hot and cold spots in your pan. Enjoy ultimate cooking flexibility with powerful elements designed to meet all of your cooking needs, including a Dual Expandable Element and Keep Warm Zone. The ceramic glass cooktop makes cleanup easy. Plus, these cooktops feature bright, backlit LED knobs that light up when the cooktop is in use, conveniently placed on the front of the cooktop.



• 5 Elements

  • With five elements, this cooktop is designed to handle all of your cooking needs, including a powerful 3,200 Watt EvenTemp? Element, a Dual Expandable Element, and convenient Keep Warm Zone.

  EvenTemp? Element

  • With EvenTemp? Cooktop Technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

  SpaceWise? Dual Expandable Element

  • The convenient 2-in-1 element expands from 5" for smaller pots to 7" for larger cookware, providing more cooktop flexibility.

  Keep Warm Zone

  • Keep food warm until everything - and everyone - is ready.

  Ceramic Glass Cooktop

  • Wipe away spills more easily with the smooth ceramic glass cooktop.

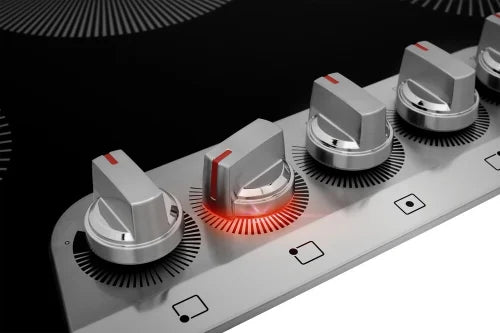

  Backlit LED Knobs

  • Backlit LED knobs light up when your element is in use.

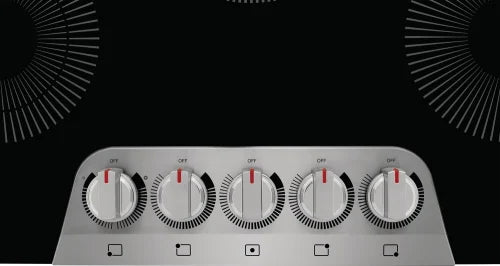

  Front Controls

  • Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.

  Approved Over Frigidaire? Electric Wall Ovens

  • Cooktops are approved for installation above any of Frigidaire's electric wall ovens.

  Other Features

  • Hot-Surface Indicator Light

  • Frigidaire? Fit Promise

• General Specifications

  Product Line:? Electric Cooktop

  Cooking Surface Type:? Smooth

  Hot-Surface Indicator Light:? Yes

  Control Location:? Front

  Display Type:? Mechanical

  Installed Over a Wall Oven:? Yes

  Power Supply Connection Location:? Right Center

  Cooktop Performance

  Right Front Element Burner Size:? 7"

  Right Rear Element Burner Size:? 6"

  Left Front Element Burner Size (Small):? 5"

  Left Front Element Burner Size (Large):? 7"

  Left Rear Element Burner Size:? 6"

  Center Rear Element Burner Size:? 9"

  Right Front Element Burner:? 1,800 Watts

  Right Rear Element Burner:? 1,200 Watts

  Left Front Element Burner (Small):? 750 Watts

  Left Front Element Burner (Large):? 1,800 Watts

  Left Rear Element Burner:? 1,200 Watts

  Center Rear Element Burner:? 3,200 Watts

  Dimensions & Weight

  Height:? 2 5/8"

  Width:? 30 5/8"

  Depth:? 21 3/8"

  Cutout Height:? 5"

  Minimum Cutout Width:? 28 1/2"

  Minimum Cutout Depth:? 19 5/8"

  Maximum Cutout Width:? 29 7/8"

  Maximum Cutout Depth:? 20 1/2"

  Product Weight:? 31 lbs.

  Electrical Specifications

  Amps @ 240 Volts:? 38.3 Amps

  Connected Load @ 240V:? 9.2 kW

  Minimum Circuit Required:? 40 Amps

  Voltage Rating:? 240 V

  Safety Certifications and Approvals

  CSA Listed:? Yes

  UL Listed:? Yes

  Certifications and Approvals

  ADA Compliant:? Yes

  Warranty

  Parts and Labor:? 1 Year
