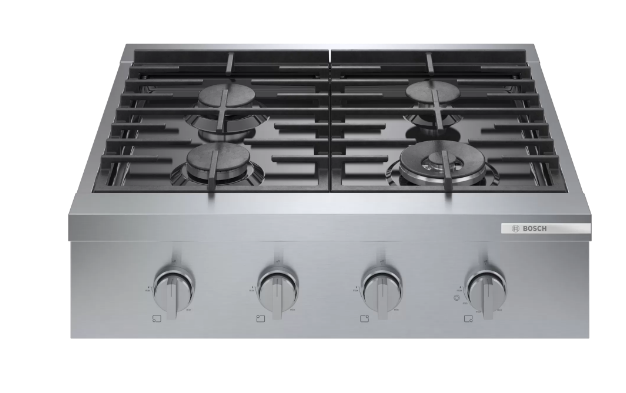

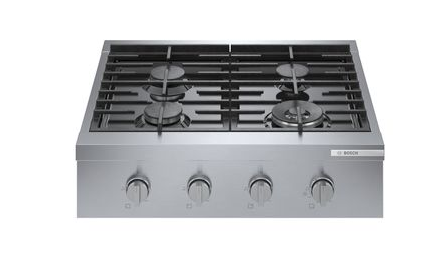

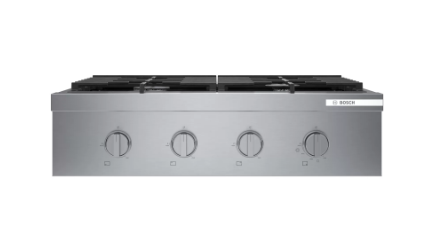

The four burner 30" stainless steel slide-in gas rangetop provides the look and features of a professional-style appliance.
Performance
4 gas burners

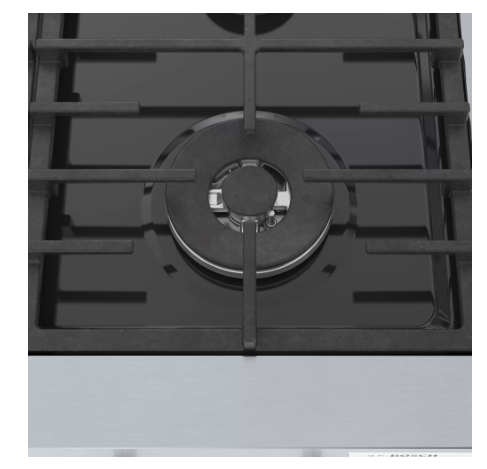

Dual flame power burner
OptiSim® burner
Convenience

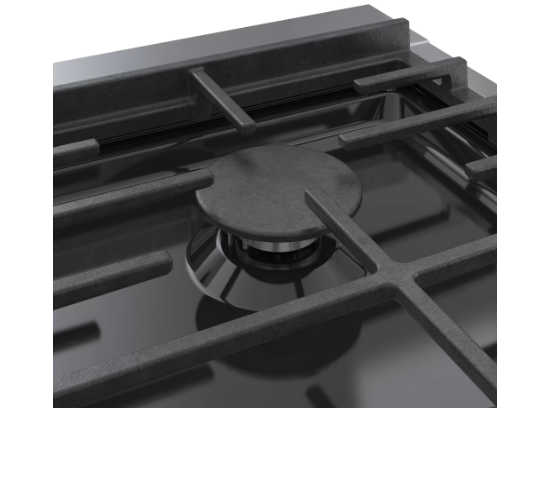

Heavy-duty grates can be cleaned in dishwasher

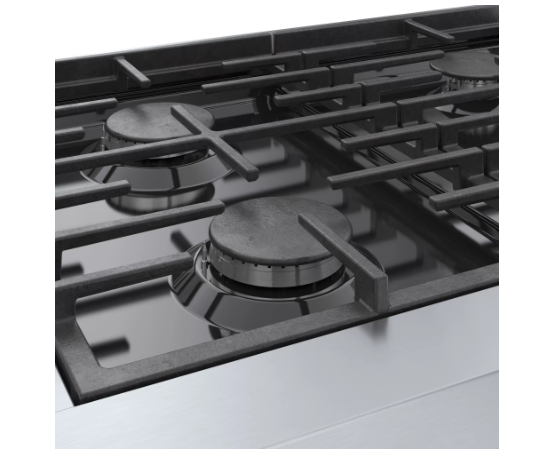

Full coverage, continuous surface grates allow pots and pans to move safely across the rangetop
Push-to-turn knobs with electronic ignition
LP conversion kit included for conversion from natural gas to liquid propane
Pro-style bullnose provides a convenient place to rest cooking utensils and ingredients while cooking.
Design
Superior quality stainless steel exterior finish
Black porcelain-enameled cooking surface
Upfront, heavy-duty metal knobs provide precise control
Rangetop design coordinates with Bosch ovens and ventilation
Safety
Flame supervision device on each burner
Technical Specifications
General
Energy source : Gas
Type of control : sword knobs
Safety device : Safety valve
Highlights : Wok burner
Connectivity
Home Connect :
Connectivity type : Not applicable
Size and weight
Dimensions : 654 x 760 x 654
Overall appliance dimensions (HxWxD) (in) : + 25 3/4" x 29 15/16" x 25 3/4"
Net weight (kg) : 34.595
Net weight (lbs) : 76.000
Cooking zone 1
Location of 1st heating element : front left
Cooking zone 2
Location of 2nd heating element : center left
Cooking zone 3
Location of 3rd heating element : back left
Cooking zone 4
Location of 4th heating element : middle back
Cooking zone 5
Location of 5th heating element : back right
Cooking zone 6
Location of 6th heating element : center right
Cooking zone 7
Location of 7th heating element : front right
Cooking zone 8
Location of 8th heating element : front middle / central
Cooking zone 9
Location of 9th heating element : front centre/cent
Construction type
Color of frame : Stainless steel
Color of surface : Stainless steel
Construction type : Built-in
Number of electric elements : 0
Number of electric cooking zones : 0
Type of frame : Professional, Standard frame
Number of gas burners : 4
Number of halogen elements : 0
Installation Type : Built-in
Number of radiant elements : 0
Number of electric warming zones : 0
Safety
Type of safety device for gas : Electromagnetic for each burner
Power on indicator :
Residual heat indicator : without
Safety device : Safety valve
Main on/off switch :
Connection
Location of gas connection : rear
Gas connection rating (W) : 13,770
Frequency (Hz) : 60
Energy source : Gas
Power cord length (cm) : 150
Power cord length (in) : 60.0 IN
